MARTIN SH28MM PIPE FITTINGS

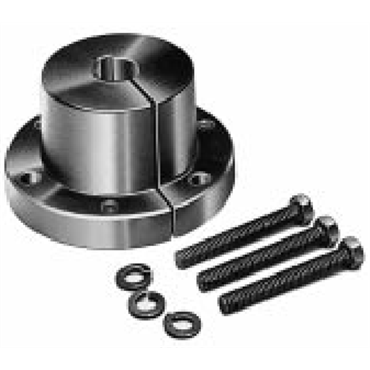

Martin SH28MM Quick Disconnect Bushing 28 mm Bore 2.687 in Flg OD

Brand: MARTIN
SKU: SH28MM
Availability: Out Of Stock
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Martin SH28MM is a quick disconnect bushing designed for mechanical power transmission. With a bore diameter of twenty-eight millimeters, this bushing is suitable for various applications requiring reliable performance. The product features a flange outside diameter of two point six eight seven inches.

  • Constructed from cast iron material for durability
  • Flange thickness measures zero point four three seven five inches
  • Compatible with many machinery setups

Product Highlights

The Martin SH28MM ensures secure connection and ease of installation in mechanical setups.

Product Information

Standard Information

  • Brand: Martin
  • Country of Origin: United States
Technical Specifications
MPN
SH28MM
Flange Outside Diameter
2.687 in
Bore Diameter
28 mm
Length Through Bore
1.3125 in
Barrel Length
0.875 in
Screw Length
1-3/8 in
Barrel Diameter
1.871 in
Number of Bolt Holes
3
Bolt Circle Diameter
2-1/4 in
