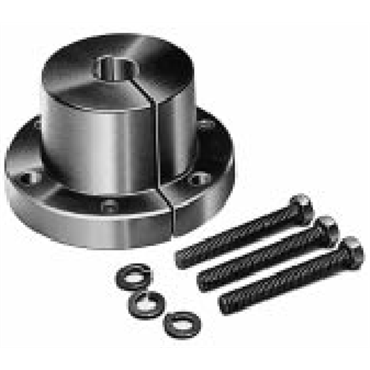

Martin SF50MM Quick Disconnect Bushing 50 mm Bore 4.625 in Flg OD 2.0625 LTB

Product Description

Martin SF50MM is a quick disconnect bushing designed for various mechanical applications. It features a fifty millimeter bore and a four point six two five inches flange outside diameter. This bushing is made from cast iron, providing durability and strength for demanding environments.

• Constructed from cast iron for durability
• Flange outside diameter of four point six two five inches
• Ideal for mechanical power transmission tasks

Product Highlights

This quick disconnect bushing is suited for applications in mechanical power transmission. It provides reliable performance in various machinery setups.

Product Information

Standard Information

• Brand: Martin
• MPN: SF50MM

Technical Specifications

• Barrel Length: 1.5 inches
• Barrel Diameter: 3-1/8 inches
• Bore Diameter: 50 mm
• Flange Outside Diameter: 4.625 inches
• Flange Thickness: 0.562 inches
• Length Through Bore: 2.0625 inches
• Screw Length: 2 inches
• Number Of Bolt Holes: 3
• Bolt Circle Diameter: 3-7/8 inches
• Manufacturer Catalog Number: 120371
