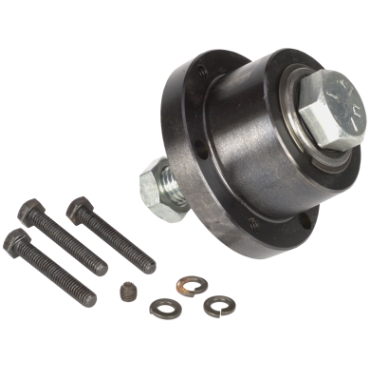

Martin SD-BB QD Bushing Idler 0.6250 In Shaft Dia. 3.1875 In Flg OD 0.5000 In Flg Thickness

Product Description

The Martin SD-BB is a QD Bushing Idler designed for mechanical power transmission applications. This bushing features a shaft diameter of point six two five inches and a flange outer diameter of three point one seven five inches, making it suitable for various systems.

• Shaft Diameter: 0.6250 inches
• Flange Outer Diameter: 3.1875 inches
• Overall Length: 3.875 inches

Product Highlights

This bushing is constructed from steel, ensuring durability and reliability in demanding environments. Its standard mounting options facilitate easy installation and adaptability to different setups.

Product Information

Standard Information

• Brand: Martin
• MPN: SD-BB

Technical Specifications

• Flange Diameter: 3.175 inches
• Flange Thickness: 0.5 inches
• Length Through Bore: 1.8125 inches
• Overall Length: 3.875 inches
• Material: Steel
• Bushing Series: SD
• Outside Diameter: 2.1875 inches
• Weight: 2.5 lbs
