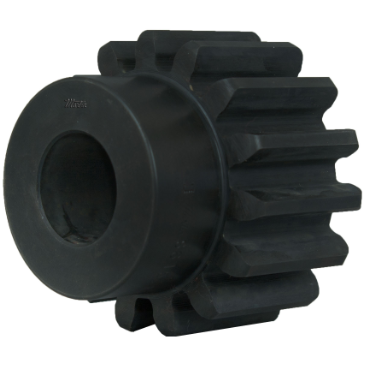

Martin S630 External Tooth Spur Gear - 6 DP - 1.5 in Face - 1-1/8 to 2 in Bore

Product Description

The Martin S630 External Tooth Spur Gear is designed for various mechanical power transmission applications. This gear features a diametral pitch of six and is constructed from durable steel. The gear is suitable for operations requiring compatibility with 30 teeth and a face width of one and a half inches.

• Reboreable to accommodate different bore sizes.
• Manufactured to ANSI Standard B15.1 for quality assurance.
• Designed for reliable performance across numerous applications.

Product Highlights

This spur gear is ideal for industrial use and is readily available for immediate shipment.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• MPN: S630
• Material: Steel
• Bore Diameter: 1-1/8 to 2 in
• Number Of Teeth: 30
• Diametral Pitch: 6
• Pressure Angle: 14.5 °
• Pitch Diameter: 5 in
• Outside Diameter: 5.333 in
• Face Width: 1.5 in
• Overall Width: 2-1/2 in
• Hub Type: Hub w/ No Screw
• Hub Projection: 1 in
• Hub Diameter: 3.125 in
• Gear Construction: Plain
• Weight: 10.55 lbs
