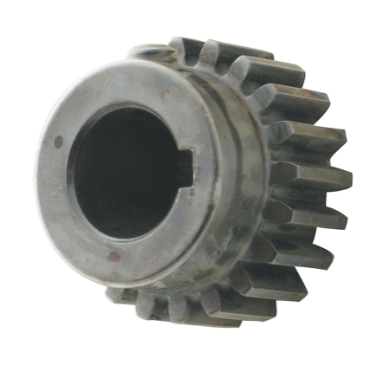

Martin S618BS1 Steel Spur Gear 6 DP 14.5 Degree Pressure Angle 18 Teeth

Product Description

The Martin S618BS1 is a steel spur gear designed for mechanical power transmission applications. It features a diametral pitch of six and a pressure angle of fourteen point five degrees. This gear includes eighteen teeth and a pitch diameter of three inches, making it compatible with various drive applications.

• Material: Steel
• Diameter: Three point three three inches
• Bore Size: One inch

Product Highlights

This spur gear is suitable for use in machinery where precise motion transfer is essential.

Product Information

Standard Information

• Brand: Martin
• MPN: S618BS1

Technical Specifications

• Pressure Angle: 14.5 degrees
• Torque at 900 RPM: 910.3611 lb/in
• Material: Steel
• No. of Teeth: 18
• Pitch Diameter: 3 inches
• Outside Diameter: 3.33 inches
• Bore Size: 1.000 inches
• Length Through Bore: 2.375 inches
• Hub Diameter: 2.5 inches
