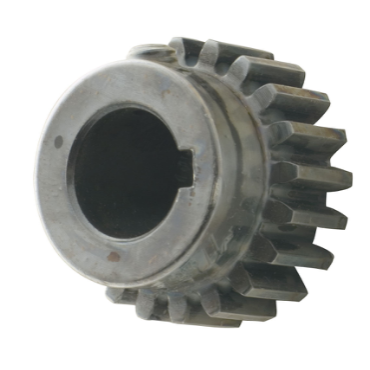

Martin S618BS 1 1/4 Steel Spur Gear 6 DP 1-1/4 Bore

Product Description

The Martin S618BS 1 1/4 is a Steel Spur Gear designed for mechanical power applications. This gear features a six diametral pitch and a fourteen and a half degree pressure angle, making it suitable for various drive systems. It has eighteen teeth, a pitch diameter of three inches, and a one and a quarter inch bore size. The gear is engineered for robust performance and is suitable for systems requiring high torque.

• Made from durable steel material
• Bore size of one and one-quarter inches
• Designed with a hub and keyway

Product Highlights

This spur gear provides reliable functionality in mechanical power transmission applications.

Product Information

Standard Information

• Brand: Martin
• MPN: S618BS 1 1/4

Technical Specifications

• Length Through Bore: 2.375 inches
• Outside Diameter: 3.33 inches
• Torque at 600 RPM: 1155.458 lb/in
• Diametral Pitch: 6
• Pressure Angle: 14.5 degrees
• Hub Diameter: 2.5 inches
• Torque at 1200 RPM: 787.8125 lb/in
• Material: Steel
• No. of Teeth: 18
• Bore Size: 1.250 inches
• Set Screw: Yes
• Weight: 3.28 lbs
• EAN or UPC: 697950439969
