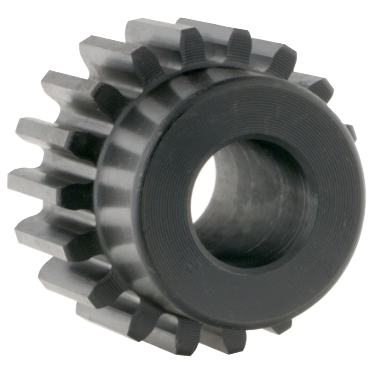

Martin S612BS1 Steel Spur Gear 6 DP 14.5 Degree Pressure Angle 1 1/2 in Hub with Keyway

Product Description

The Martin S612BS1 is a steel spur gear designed for mechanical power transmission. This gear features a diameter of two point three three inches and is built with a hub design that includes a set screw and keyway for secure attachment. It is suitable for various applications in machinery and equipment requiring precise motion transfer.

• Reborable steel gear with a diametral pitch of 6
• Pressure angle of 14.5 degrees with 12 teeth
• Finished bore of one inch and a face width of one and a half inches

Product Highlights

This spur gear is constructed from durable steel, ensuring long-lasting performance in demanding conditions. It meets ANSI standard B15.1 for quality and safety.

Product Information

Standard Information

• Brand: Martin
• MPN: S612BS1

Technical Specifications

• Bore Size: 1.000 inches
• Hub Diameter: 1 1/2 inches
• Pressure Angle: 14.5 degrees
• Diametral Pitch: 6
• No. of Teeth: 12
• Outside Diameter: 2.33 inches
• Weight: 1.16 pounds
• Torque at 200 RPM: 945.375 lb/in
