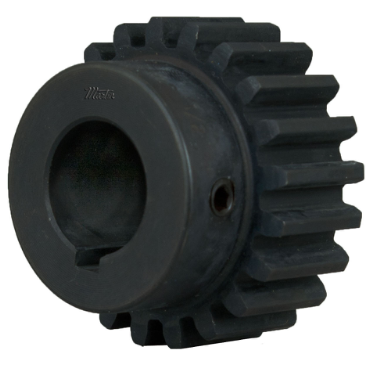

Martin S1224BS1 External Tooth Spur Gear - 12 DP, 14.5 Degree PA, 24 Teeth, 0.75 in Face, 1 in Bore

Product Description

The Martin S1224BS1 is an external tooth spur gear designed for mechanical power transmission applications. This gear features a diameter pitch of twelve, with a pressure angle of fourteen point five degrees. It contains twenty-four teeth and has a face width of zero point seventy-five inches. The bore diameter of this gear is one inch, allowing for easy installation in various drive components.

• Material: Steel for durability.
• Bored to size for precision fitting.
• Complies with ANSI Standard B15.1.

Product Highlights

This spur gear is ideal for use in machinery where reliable performance and strength are essential. It connects with hubs that have a keyway and set screw for secure attachment.

Product Information

Standard Information

• Brand: Martin
• Manufacturer Catalog No: 00540

Technical Specifications

• Weight: 0.8 lbs
• Hub Type: Hub with Keyway & Set Screw
• Bore Type: Bored to Size
• Face Width: 0.75 in
• Keyway Size: 0.250 x 0.125
• Hub Diameter: 1.750 in
• Bore Diameter: 1 in
• Outside Diameter: 2.166 in
