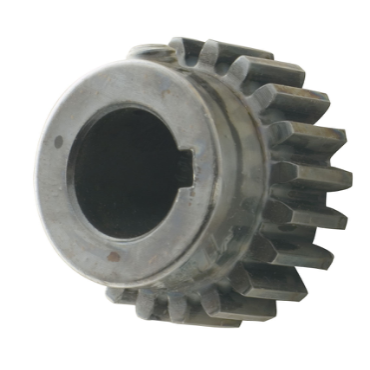

Martin S1221BS5/8 Steel Spur Gear 12 DP 14.5 Degrees Pressure Angle

Product Description

The Martin S1221BS5/8 is a durable steel spur gear designed for various mechanical applications. This gear features a twelve diametral pitch, a fourteen point five degrees pressure angle, and twenty-one teeth. It has specific dimensions including a one point seven five inches pitch diameter and a bore size of five eighths inches. The gear is suitable for tasks involving torque transmission and gear assemblies.

• Durable steel construction
• Bore size of five eighths inches
• Designed for mechanical power transmission

Product Highlights

This spur gear is ideal for use in applications requiring high performance and reliable torque transfer.

Product Information

Standard Information

• Brand: Martin
• MPN: S1221BS5/8

Technical Specifications

• Outside Diameter: 1.917 inches
• Bore Diameter: 0.625 inches
• Number of Teeth: 21
• Material: Steel
• Torque at 300 RPM: 115.5458 lb/in
• Pitch Diameter: 1.75 inches
• Pressure Angle: 14.5 degrees
• Length Through Bore: 1.375 inches
