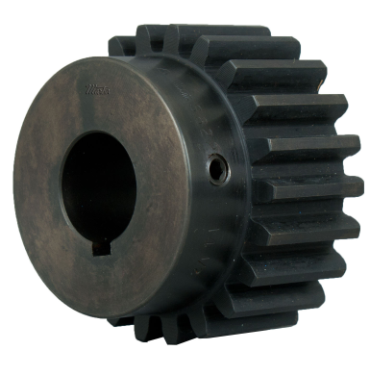

Martin S1018BS3/4 External Tooth Spur Gear - 10 DP, 14.5 Angle PA, 18 Teeth, 1 in Face, 3/4 in Bore

Product Description

The Martin S1018BS3/4 is a steel external tooth spur gear designed for mechanical power transmission applications. It features a diameter pitch of ten and a pressure angle of fourteen point five degrees. With a total of eighteen teeth and a face width of one inch, this gear has a bore diameter of three quarters of an inch and is bored to size for precise fitting.

• Designed for increased reliability in power transmission
• Constructed from durable steel for long-lasting performance
• Compatible with various mechanical systems

Product Highlights

This gear is suitable for various drive applications and provides strong support in gear assemblies.

Product Information

Standard Information

• Brand: Martin
• Country of Origin: United States

Technical Specifications

• MPN: S1018BS3/4
• Part Number: 02102686
• Weight: 0.81 lbs
• Material: Steel
• Teeth: 18
• Face Width: 1 inch
• Bore Diameter: 3/4 inch
• Diameter Pitch: 10 DP
• Pressure Angle: 14.5 degrees
