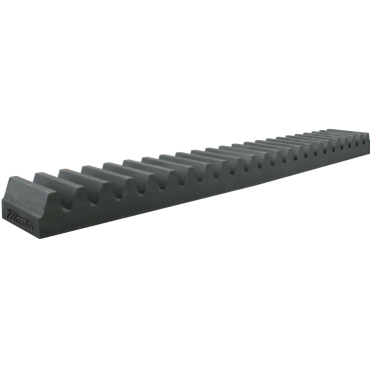

Martin RA8X6 Steel Gear Rack - 8 DP, 14.5 ° Pressure Angle, 1.25 in Width, 6 ft OAL

Product Description

The Martin RA8X6 Steel Gear Rack is built from low carbon cold drawn steel. This gear rack is designed for applications requiring precision and durability. It features an eight diametral pitch, with a pressure angle of fourteen point five degrees. The gear rack is one point twenty-five inches wide and measures six feet in length.

• Material: Low carbon cold drawn steel
• Length: Six feet
• Pressure Angle: Fourteen point five degrees

Product Highlights

This gear rack is recommended for driving applications where reliability is crucial. Suitable pinions can be selected from the spur gear section of the catalog. Custom racks can be designed using different materials and sizes.

Product Information

Standard Information

• Part Number: RA8X6
• Category: Gear Racks

Technical Specifications

• Diametral Pitch: 8
• Pitch Line to Back: 1.125 inches
• Overall Thickness: 1.25 inches
• Face Width: 1.25 inches
• Weight: 28.62 pounds
• EAN or UPC: 697950059365
