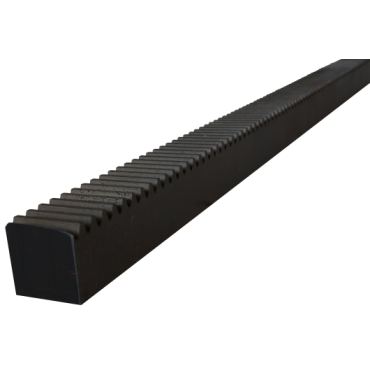

Martin RA12X4 Gear Rack - 12 DP, 14.5 ° Pressure Angle, 0.75 in Width, 4 ft OAL

Product Description

The Martin RA12X4 is a steel gear rack suited for various mechanical applications. It is made from low carbon steel, ensuring durability and strength. The gear rack features a diametral pitch of 12, a pressure angle of 14.5 degrees, and measures four feet in length. Pinions for this rack are available for selection from the spur gear catalog. The rack may also be produced in special lengths, materials, and pitches upon request.

• Overall thickness of three-quarters of an inch
• Designed for mechanical power transmission
• Available for cutting and machining

Product Highlights

The Martin RA12X4 gear rack is ideal for applications requiring precise mechanical movements and durability.

Product Information

Standard Information

• Brand: Martin
• Country of Origin: United States

Technical Specifications

• Material: Steel
• Overall Length: 4 ft
• Face Width: 3/4 in
• Pressure Angle: 14.5 °
• Diametral Pitch: 12
• Overall Thickness: 3/4 in
• Weight: 6.8 lbs
• EAN/UPC: 697950059563
• Pitch Line to Back: 0.667 in
