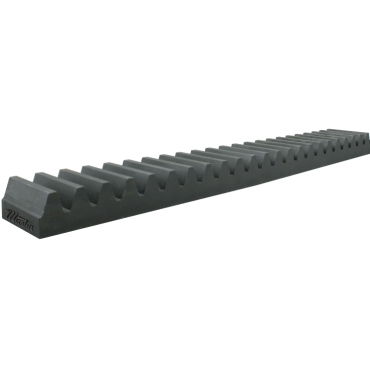

Martin R8X6 Steel Gear Rack - 8 DP, 14.5 Degree Pressure Angle, 1.25 Inch Width, 6 Feet Long

Product Description

The Martin R8X6 Steel Gear Rack is made from low carbon cold drawn steel and measures six feet in length. This gear rack is designed with an eight diametral pitch and a fourteen point five degree pressure angle. It is available in a face width of one and one-fourth inches, allowing for precise alignment and functionality in mechanical systems.

• Made from low carbon cold drawn steel.
• Available in lengths of two, four, and six feet.
• Compatible pinions can be chosen from the spur gear section.

Product Highlights

The Martin R8X6 gear rack is suitable for various applications in mechanical power transmission. It is commonly used in robotics, conveyor systems, and other equipment requiring reliable linear movement.

Product Information

Standard Information

• Part Number: R8X6
• Brand: Martin

Technical Specifications

• Diametral Pitch: 8
• Pressure Angle: 14.5 degrees
• Face Width: 1.25 in
• Length: 6 ft
• Weight: 15.66 lbs
• Material: Steel
• Pitch Line to Back: 0.625 in
• Overall Thickness: 0.75 in
