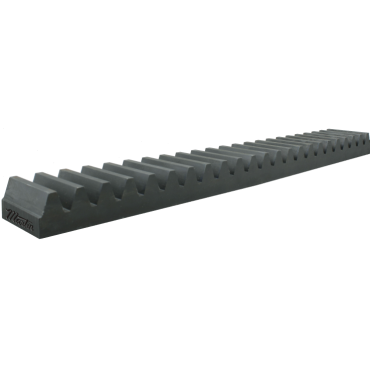

Martin R8X4 Steel Gear Rack - 8 DP, 14.5 ° Pressure Angle, 1.25 in Width, 4 ft OAL

Product Description

The Martin R8X4 is a steel gear rack designed for mechanical power transmission applications. This gear rack features an eight diametral pitch and a fourteen point five degree pressure angle. It measures one point twenty-five inches in width and four feet in overall length. It is constructed from low carbon cold drawn steel, ensuring durability in various working environments.

• Eight diametral pitch for effective gear interaction
• Four feet in length for versatile applications
• Compatible with standard spur gear pinions

Product Highlights

This gear rack allows cutting and machining, making it suitable for custom applications. It can be used in various assemblies where precise motion control is required. The rack can also be supplied in other materials, sizes, and pitches as needed.

Product Information

Standard Information

• Brand: Martin
• MPN: R8X4

Technical Specifications

• Face Width: 1.25 inches
• Material: Steel
• Overall Thickness: 0.75 inches
• Pressure Angle: 14.5 °
• Length: 4 feet
• Diametral Pitch: 8
• Pitch Line to Back: 0.625 inches
• Weight: 10.4 lbs
• EAN or UPC: 697950059310
