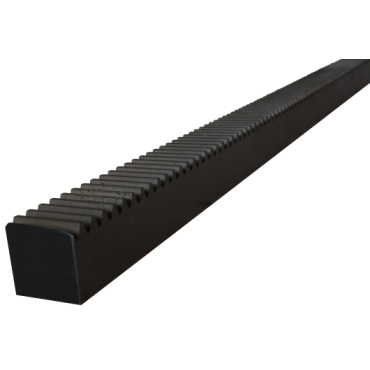

Martin R20X6 Steel Gear Rack 20 DP (6 ft) Replacement MPN

Product Description

Martin R20X6 is a steel gear rack designed for mechanical power transmission applications. This gear rack has a diametral pitch of twenty and a pressure angle of fourteen point five degrees. It measures six feet long and features a face width of three eighths inch. It is made from low carbon cold drawn steel, ensuring durability and strength.

• Length: 6 feet
• Material: Steel
• Diametral Pitch: 20

Product Highlights

This gear rack is ideal for various mechanical applications where precise motion control is required. It is compatible with spur gears in the catalog, allowing for easy integration into existing systems.

Product Information

Standard Information

• Brand: Martin
• MPN: R20X6

Technical Specifications

• Length: 6 feet
• Weight: 2.52 lbs
• Material: Steel
• Face Width: 3/8 inch
• Overall Thickness: 3/8 inch
• Pitch Line to Back: 0.325 inch
• Pressure Angle: 14.5 degrees
• Diametral Pitch: 20
• EAN or UPC: 697950059815
