Martin R2016X6 Gear Rack 16 DP 20 ° Pressure Angle 0.75 in Width 6 ft OAL

Product Description

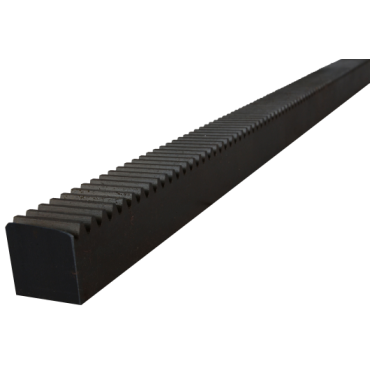

The Martin R2016X6 is a steel gear rack with a length of six feet. It features a diametral pitch of sixteen and a pressure angle of twenty degrees. This rack is suitable for various mechanical applications.

• Made from durable low carbon cold drawn steel
• Available with a face width of three-quarters of an inch
• Allows for cutting and machining

Product Highlights

This gear rack is essential for precise movement in machinery. It works well with compatible pinions from the spur gear section.

Product Information

Standard Information

• Brand: Martin
• MPN: R2016X6

Technical Specifications

• Overall Thickness: three-quarters of an inch
• Diametral Pitch: sixteen
• Pressure Angle: twenty degrees
• Length: six feet
• Material: Steel
• Pitch Line to Back: zero point six eight eight inches
• Face Width: three-quarters of an inch
• Weight: ten point two pounds
• EAN or UPC: 697950059747
