Martin R2010X4 Gear Rack - 10 DP, 20 Degrees Pressure Angle, 1.25 in Width, 4 ft OAL

Product Description

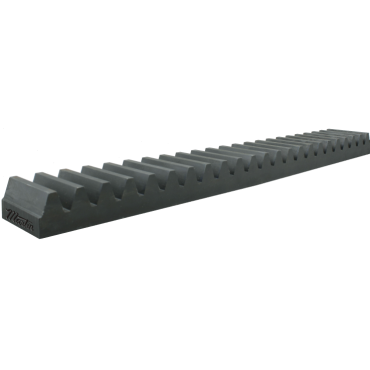

Martin R2010X4 is a steel gear rack designed for mechanical power transmission. This product features a diametral pitch of ten and a pressure angle of twenty degrees. It has a face width of one point twenty-five inches and an overall length of four feet. This gear rack is suitable for various applications in industries requiring precise movement and power transmission.

• Material: Steel
• Overall Length: Four feet
• Pressure Angle: Twenty degrees

Product Highlights

This gear rack is built for durability and efficiency. It can accommodate pinions from the spur gear section of the catalog. Special racks can be produced in different materials or sizes based on specific requirements.

Product Information

Standard Information

• Brand: Martin
• MPN: R2010X4

Technical Specifications

• Material: Steel
• Overall Thickness: One point twenty-five inches
• Weight: Nineteen point forty-eight pounds
• Diametral Pitch: Ten
• Pitch Line to Back: One point fifteen inches
• Number of Teeth: 153
