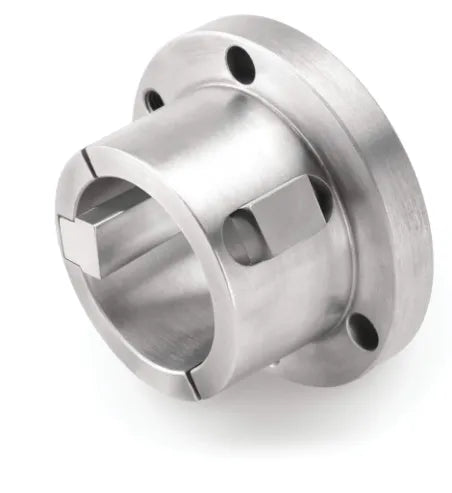

Martin R1X2-3/8 Split Taper Bushing - 2.3750 in Bore - 5.38 in Flg OD - 2.88 in LTB

Product Description

The Martin R1X2-3/8 is a split taper bushing designed for reliable power transmission. This bushing features a bore diameter of two point three seven five inches and an overall flange outside diameter of five point three seven five inches. It is suitable for various applications within mechanical power transmission systems.

• Easy installation and removal
• Keyed for secure fit on shaft and hub
• Solid flange design for added strength

Product Highlights

Provides a true clamp on the shaft through its split design.

Product Information

Standard Information

• Brand: Martin
• Country of Origin: United States

Technical Specifications

• Bore Diameter: 2.3750 inches
• Flange Outside Diameter: 5.375 inches
• Length Through Bore: 2.875 inches
• Flange Thickness: 0.625 inches
• Number of Bolt Holes: 3
• Bolt Circle Diameter: 4.62 inches
• Barrel Diameter Large End: 4 inches
• Screw Length: 1-3/4 inches
