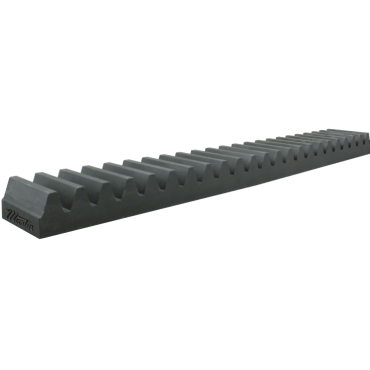

Martin R10X4 Steel Gear Rack 10 DP 1 in Width 4 ft OAL

Product Description

The Martin R10X4 Steel Gear Rack is made from low carbon cold drawn steel. It features a diametral pitch of ten, a pressure angle of fourteen and a half degrees, and a face width of one inch. This gear rack is four feet long, providing substantial support for various mechanical applications. The steel material ensures durability under regular operational conditions.

• Diametral pitch of ten
• Four-foot length for versatile applications
• Made from low carbon steel for durability

Product Highlights

The gear rack is available in multiple lengths and pressure angles. It is suitable for applications requiring precise alignment and compatibility with spur gears.

Product Information

Standard Information

• Brand: Martin
• MPN: R10X4

Technical Specifications

• Diametral Pitch: 10
• Face Width: 1 in
• Material: Steel
• Length: 4 ft
• Pitch Line to Back: 0.525 in
• Pressure Angle: 14.5 °
• Overall Thickness: 5/8 in
• Weight: 7.0 LB
• EAN or UPC: 697950059433
