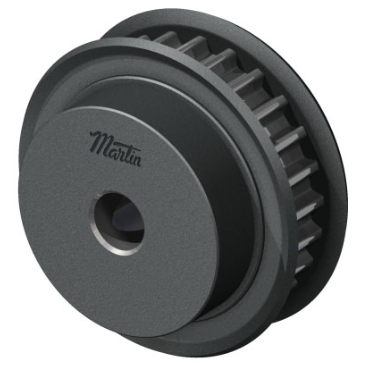

Martin PB8MX36S62 MPC Plain Bored Synchronous Sprocket

Product Description

The Martin PB8MX36S62 MPC Plain Bored Synchronous Sprocket is designed for use in high torque applications. This sprocket features a compact design and is suitable for synchronous belt drives. The product has thirty-six teeth and comes with a reborable bore ranging from one inch to two point three one inches.

• Made from durable steel material.
• Compatible with 8 mm belt pitch.
• Non-slip toothed design with no lubrication needed.

Product Highlights

This sprocket is efficient, quiet, and meets high precision standards.

Product Information

Standard Information

• Brand: Martin
• Part Number: PB8MX36S62

Technical Specifications

• Belt Pitch: 8 mm
• Outside Diameter: 3.5460 inches
• Hub Outside Diameter: 3.13 inches
• Maximum Flange Outside Diameter: 4.010 inches
• Bore Range Minimum: 1 inch
• Bore Range Maximum: 2.3130 inches
• Length Through Bore: 3.560 inches
• Bushing Type: MPB
• Number of Teeth: 36
• Material: Steel
• Pitch Diameter: 3.609 inches
• Weight: 8.0 lbs
• Finish: Protective Coating
• EAN or UPC: 697950723013
