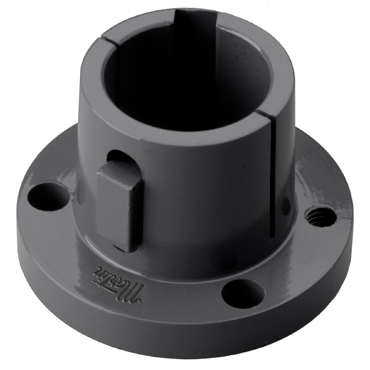

Martin P1X1+3/16 Split Taper Bushing 0.8125 in Bore 3 in Flg OD

Product Description

The Martin P1X1+3/16 Split Taper Bushing is designed for mechanical power transmission applications. This bushing accommodates a bore diameter of zero point8125 inches and a flange outside diameter of three inches. It offers reliable performance for various machinery setups.

• Easy installation and removal process.
• Keyed to both shaft and hub for secure fitting.
• Durable steel construction enhances longevity.

Product Highlights

This bushing features a split design that allows for effective clamping on the shaft, making it suitable for precise assembly in various equipment.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• Weight: 1.30 lbs
• Bore Diameter: 0.8125 in
• Flange Outside Diameter: 3 in
• Length Through Bore: 1.937 in
• Barrel Length: 1.531 in
• Screw Length: 1 in
• Number Of Bolt Holes: 3
• Keyway Size: 3/16 x 3/32 in
