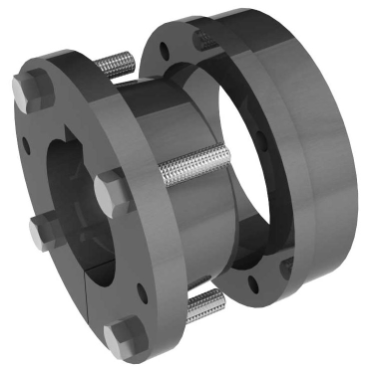

Martin MXT3537/16 Conveyor Bushing

Product Description

The Martin MXT3537/16 is a conveyor bushing designed for heavy-duty applications. This part features a bore size of three and seven-sixteenths inches and is ideal for various mechanical power transmission setups. The durable cast iron material provides reliability and strength under challenging conditions.

• 3 7/16 inch bore size
• 6.3125 inch flange outside diameter
• 2.46875 inch length through bore

Product Highlights

Suitable for use in tapered conveyor pulley systems, this bushing is designed to withstand high loads and provides a secure fit for efficient operation.

Product Information

Standard Information

• Brand: Martin
• Material: Cast Iron

Technical Specifications

• Bore Size: 3.4375 inches
• Flange Outside Diameter: 6.3125 inches
• Length Through Bore: 2.46875 inches
• Flange Thickness: 25/32 inches
• Bolt Circle Diameter: 5 7/16 inches
• Cap Screws: 4
• Wrench Torque: 70 lbf
• Keyway Size: 7/8 x 5/16
• Capscrew Size: 1/2 x 1 3/4
• Weight: 7.8 lb
• EAN or UPC: 697950358550
