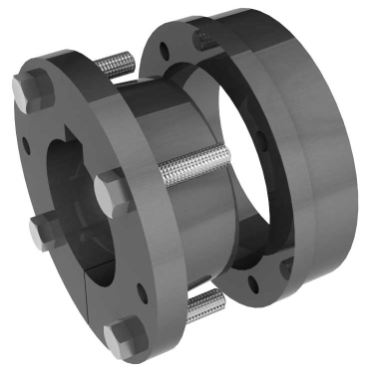

Martin MXT3523/16 Conveyor Bushing

Product Description

The Martin MXT3523/16 Conveyor Bushing is designed for use in conveyor systems. This product features a bore size of two and three-sixteenths inches. The flange outside diameter measures six and three-eighths inches. It is suitable for various applications including power transmission in mechanical systems.

• Bushing Type: MXT
• Material: Cast Iron
• Weight: eleven point seven five pounds

Product Highlights

This conveyor bushing is easy to install and designed for durability. It fits standard components used in conveyor systems.

Product Information

Standard Information

• Part Number: 101860252
• Quantity Available: Ready To Ship

Technical Specifications

• Bore Size: 2.1875 in
• Length Through Bore: 2.46875 in
• Flange Thickness: 25/32 in
• Bolt Circle Diameter: 5 7/16 in
• Cap Screws: 4
• Wrench Torque: 70 lbf
• Keyway Size: 1/2 x 1/4
• Maximum Bore Range: 3.5 in
