Martin ML22523/8 ML Series Jaw Coupling Hub 2.375 inch Bore Diameter Replacement MPN

Product Description

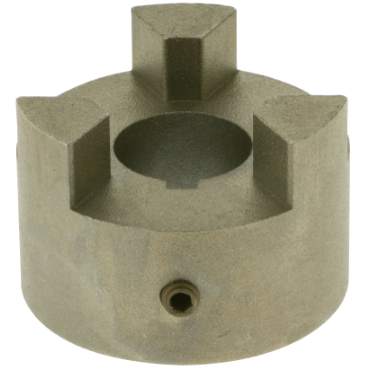

The Martin ML22523/8 is a jaw coupling hub designed for effective power transmission applications. The coupling features a bore diameter of two point three seven five inches and is suitable for a variety of mechanical systems.

• Jaw coupling type for high torque applications
• Finished bore with a size of two hundred twenty-five
• Durable steel construction for longevity

Product Highlights

This coupling hub accommodates angular misalignment and provides a reliable connection between shafts for smooth operation.

Product Information

Standard Information

• Brand: Martin
• MPN: ML22523/8

Technical Specifications

• RPM [Max]: 4200
• Hub O.D.: 5 inches
• Bore Type: Finished
• Keyway Size: 5/8 x 5/16 inches
• Length Through Bore: 2.188 inches
• Connecting Medium: Elastomeric Spider
• Coupling Size: 225
• Bore Diameter: 2.375 inches
• Coupling Type: Jaw
• Spider Material: SUL, SRL, SHL, SBL
• Outside Diameter: 5 inches
• Overall Assembly Length: 5.375 inches
• Lock Type: Setscrew
• Inch/Metric: Inch
• Material: Steel
• Set Screw Size: 1/2-13 x 1/2 inches
• Bore Range [Max]: 2.625 inches
• Weight: 7.6 LB
• EAN or UPC: 697950147697
