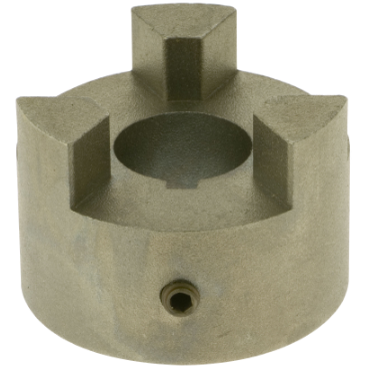

Martin ML22513/4 Jaw Coupling Hub - 1.75 Inch Bore

Product Description

The Martin ML22513/4 Jaw Coupling Hub is designed for mechanical power transmission systems. This hub features a bore diameter of one and three-quarter inches and is constructed from steel, ensuring durability. It serves as an essential component in various applications where flexible power transmission is needed.

• Jaw coupling type for flexibility
• Finished bore design
• Maximum RPM rating of 4200

Product Highlights

This hub allows for smooth power transmission while accommodating angular and parallel misalignments.

Product Information

Standard Information

• Minimum Order Quantity: 1
• Availability: In stock

Technical Specifications

• Set Screw Size: 3/8-16 x 3/8
• Material: Steel
• Bore Diameter: 1.750 in
• Overall Assembly Length: 5 3/8 in
• Outside Diameter: 5 in
• RPM [Max]: 4200 rpm
• Length Through Bore: 2.188 in
• Lock Type: Setscrew
• Keyway Size: 3/8 x 3/16
