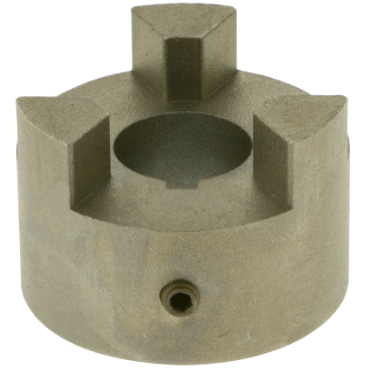

Martin ML1101/2 ML Series Jaw Coupling Hub 0.500 in Bore

Product Description

The Martin ML1101/2 is a jaw coupling hub designed for efficient power transmission applications. It features a bore diameter of 0.500 inches and is suitable for connection with elastomeric spiders for flexibility. This coupling is an essential component for handling angular and parallel misalignment of shafts.

• Jaw coupling type for effective load handling.
• Constructed from solid steel for durability.
• Max RPM rating of 5000 for high-performance applications.

Product Highlights

Ideal for mechanical power transmission and compatible with various jaw coupling systems.

Product Information

Standard Information

• Brand: Martin
• Part Number: ML1101/2

Technical Specifications

• Material: Steel
• Bore Diameter: 0.500 inches
• Outside Diameter: 3.3125 inches
• Bore Range [Max]: 1.625 inches
• Overall Assembly Length: 4 1/4 inches
• Max RPM: 5000
• Set Screw Size: 1/4-20 x 1/4
• Coupling Type: Jaw
• Lock Type: Setscrew
• Connecting Medium: Elastomeric Spider
• Length Through Bore: 1.688 inches
• Hub Outside Diameter: 3.313 inches
• Bore Type: Finished
• Coupling Size: 110
• Weight: 3.25 pounds
• EAN/UPC: 697950146812
