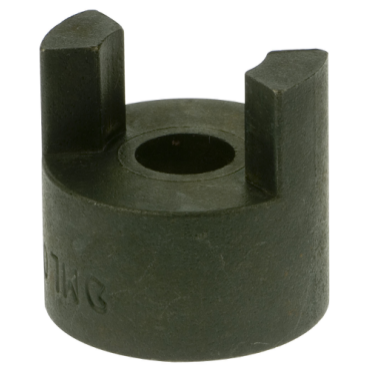

Martin ML09011/8 Jaw Coupling Hub

Product Description

The Martin ML09011/8 Jaw Coupling Hub is designed for efficient power transmission. This coupling hub is ideal for applications where flexibility and easy installation are key requirements.

• Allows for angular and parallel misalignment of shafts.
• Constructed from durable steel material.
• Designed with a length through bore of zero point eight one three inches.

Product Highlights

Efficient jaw coupling for various mechanical applications.

Product Information

Standard Information

• Brand: Martin
• MPN: ML09011/8

Technical Specifications

• Length Through Bore: zero point eight one three inches
• RPM [Max]: nine thousand RPM
• Outside Diameter: two point one two five inches
• Coupling Size: 090
• Keyway Size: one quarter x one eighth inches
• Bore Range [Max]: one point one two five inches
• Overall Assembly Length: two point one two five inches
• Bore Diameter: one point one two five inches
• Connecting Medium: Elastomeric Spider
• Spider Material: SUL, SRL, SHL & SBL
• Lock Type: Setscrew
• Inch/Metric: Inch
• Hub O.D.: two point one two five inches
• Bore Type: Finished
• Material: Steel
• Set Screw Size: five sixteenth - eighteen x five sixteenth
• Coupling Type: Jaw
• Weight: zero point six nine pounds
• EAN or UPC: 697950146393
