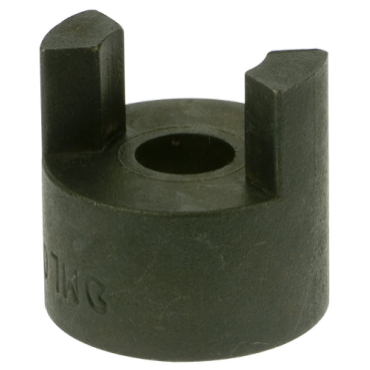

Martin ML0751/4 Jaw Coupling Hub 0.25 inch

Product Description

The Martin ML0751/4 is a jaw coupling hub designed for efficient power transmission. This coupling is built with steel material and features a bore diameter of 0.25 inches.

• Bore diameter of 0.25 inches
• Constructed from durable steel
• Compatible with elastomeric spiders

Product Highlights

This jaw coupling hub helps accommodate angular or parallel misalignment of shafts, making it suitable for various applications in mechanical power transmission.

Product Information

Standard Information

• Brand: Martin
• Part Number: ML0751/4

Technical Specifications

• Hub O.D.: 1 3/4 inches
• Outside Diameter: 1.75 inches
• Length Through Bore: 0.813 inches
• Lock Type: Setscrew
• Max RPM: 11000 rpm
• Connecting Medium: Elastomeric Spider
• Overall Assembly Length: 2.125 inches
• Spider Material: SUL, SRL, SHL & SBL
• Material: Steel
• Coupling Size: 075
• Bore Range [Max]: 0.875 inches
• Keyway Size: No Keyway
• Bore Type: Reborable
• Weight: 0.4 LB
• EAN or UPC: 697950146140
