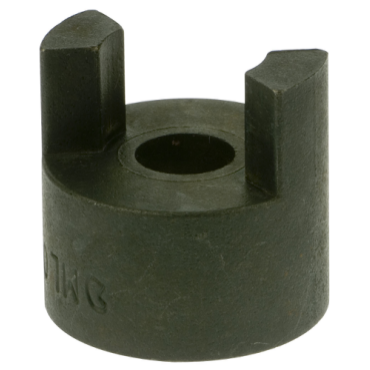

Martin ML050 5/16 Jaw Coupling Hub

Product Description

The Martin ML050 5/16 Jaw Coupling Hub is designed for efficiency and ease of use. This coupling hub features a bore diameter of 0.3125 inches and is made of durable steel. It is ideal for connecting shafts in various mechanical applications.

• No lubrication required
• Easy installation process
• Reborable design for flexibility

Product Highlights

This coupling hub allows for smooth power transmission between shafts while accommodating angular or parallel misalignment, thanks to the Buna-n spider component.

Product Information

Standard Information

• Part Number: 100813766
• Brand: Martin

Technical Specifications

• Outside Diameter: 1.0625 inches
• Hub Diameter: 1 1/16 inches
• Length Through Bore: 0.625 inches
• Bore Range [Max]: 0.625 inches
• Connecting Medium: Elastomeric Spider
• Coupling Size: 050
• Overall Assembly Length: 1 21/32 inches
• Hub O.D.: 1.063 inches
• Spider Material: SUL, SRL, SHL & SBL
• RPM [Max]: 18000 rpm
• Lock Type: Setscrew
• Inch/Metric: Inch
• Keyway Size: No Keyway
• Bore Type: Reborable
• Material: Steel
• Coupling Type: Jaw
• Weight: 0.12 LB
• EAN or UPC: 697950146003
