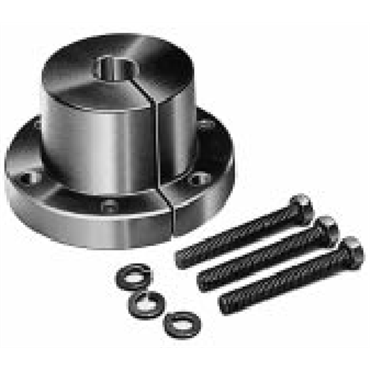

Martin M41/4 Quick Disconnect Bushing - M Bushing, 4.2500 in Bore, 9 in Flg OD, 6.75 LTB

Product Description

The Martin M41/4 Quick Disconnect Bushing is a robust solution designed for various mechanical power transmission needs. This product features a bore size of four point two five inches and an overall flange outside diameter of nine inches. Constructed from cast iron, this bushing provides durability in demanding applications.

• Compatible with many mechanical systems
• Easy installation and removal
• Suitable for various industrial applications

Product Highlights

Utilizing a keyway finish, this bushing meets industry standards for performance and reliability.

Product Information

Standard Information

• Brand: Martin
• Country of Origin: United States

Technical Specifications

• MPN: M41/4
• Bore Diameter: 4.2500 in
• Bushing Size: M
• Material: Cast Iron
• Flange Outside Diameter: 9 in
• Length Through Bore: 6.75 in
• Screw Length: 6-3/4 in
• Number of Bolt Holes: 4
• Flange Thickness: 1.25 in
• Mounting Type: Conventional
• Keyway Size: 1 x 1/2 in
