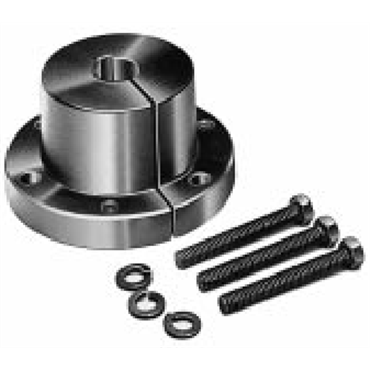

Martin M41/2 Quick Disconnect Bushing 4.5000 in Bore 9 in Flg OD

Product Description

The Martin M41/2 is a Quick Disconnect Bushing designed for versatility in mechanical power transmission systems. This bushing has a bore diameter of four point five inches and a flange outer diameter of nine inches. The product is essential for various applications in industries where quick and efficient disconnection is necessary.

• Bore Diameter: 4.5000 inches
• Flange Outside Diameter: 9 inches
• Material: Cast Iron

Product Highlights

This product provides efficient connectivity in mechanical systems, enhancing operational efficiency.

Product Information

Standard Information

• Brand: Martin
• MPN: M41/2

Technical Specifications

• Length Through Bore: 6.75 inches
• Flange Thickness: 1.25 inches
• Barrel Length: 5.5 inches
• Barrel Diameter: 6.5 inches
• Bolt Circle Diameter: 7.875 inches
• Number Of Bolt Holes: 4
