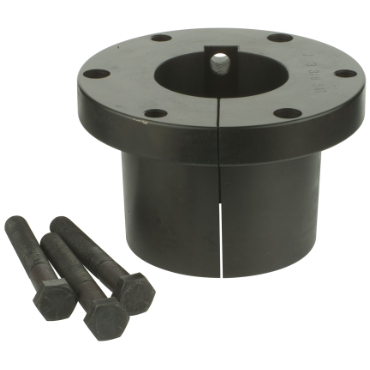

Martin J-STL33/8 All Steel QD Bushing 3 3/8 in Bore

Product Description

The Martin J-STL33/8 is an all steel quick disconnect (QD) bushing designed for mounting in mechanical systems. It features a bore size of three and three eighths inches. This model offers flexibility in installation, allowing it to mount with the bushing flange either toward or away from the motor or machine. The capscrews used for securing are accessible from the outside, aiding in maintenance.

• Compatible with a bore size of 3.375 inches.
• Designed with reversible mounting options.
• Constructed from durable steel materials.

Product Highlights

Ideal for various mechanical applications requiring robust connection elements, the J-STL33/8 provides reliability and ease of use.

Product Information

Standard Information

• Brand: Martin
• MPN: J-STL33/8

Technical Specifications

• Weight: 19.1 lb
• Bore Size: 3.375 in
• Material: Steel
• Bore Type: Standard
• Wrench Torque: 135 lbf
• Flange Thickness: 1 in
• Overall Length: 4.625 in
• Capscrew Size: 5/8-11 UNC x 4 1/2
• Flange Outside Diameter: 7.25 in
• Keyway Size: 7/8 x 7/16 in
