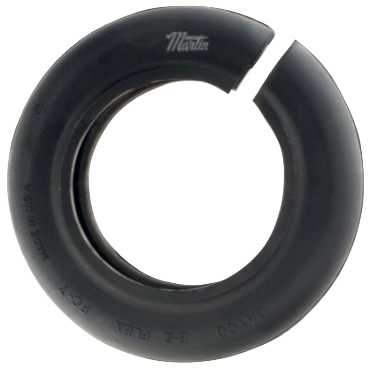

Martin E5 Coupling Element - Size 5 - Replacement MPN E5

Product Description

The Martin E5 Coupling Element is designed for effective torque transmission in applications where flexibility is essential. This coupling element, made from EPDM material, is built to support a variety of industrial needs. It is an ideal choice for engineers and technicians looking for reliable coupling solutions.

• Operating temperature range of -30 °F to 275 °F
• Maximum RPM of 7600
• Rated torque of 240 in lb

Product Highlights

The Martin E5 is engineered for performance in demanding environments. Its two-piece design simplifies installation and maintenance, making it a preferred option for maintenance professionals.

Product Information

Standard Information

• Brand: Martin
• Part Number: 100814153

Technical Specifications

• Coupling Size: 5
• Material: EPDM
• Weight: 2.0 lb
• Outside Diameter: 2.94 in
• Torque Rating: 240 in lb
• Temperature Range (Min): -30 °F
• Temperature Range (Max): 275 °F
• RPM (Max): 7600 rpm
• HP @ RPM: 6.9 hp @ 1800 rpm
• EAN or UPC: 697950081519
