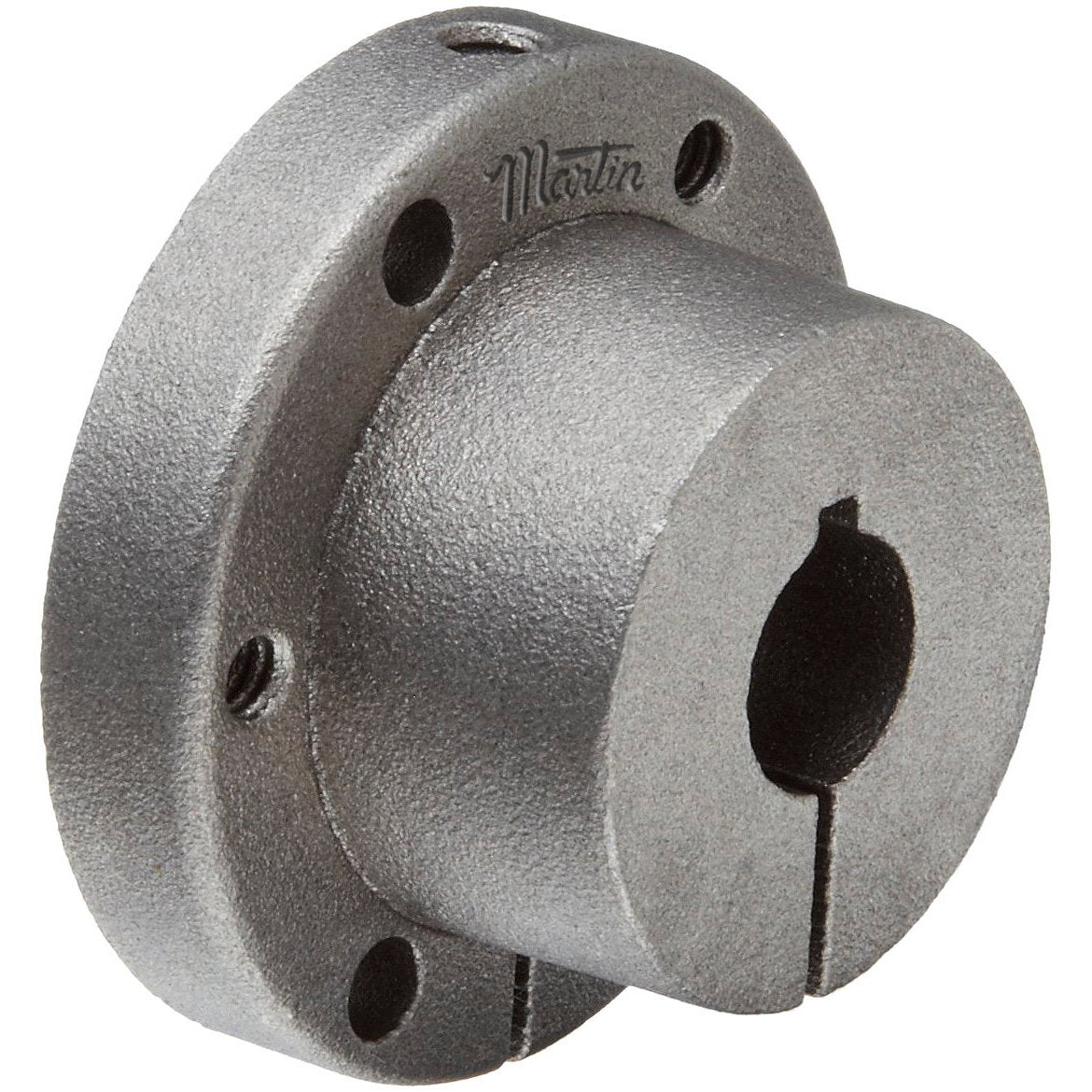

Martin E27/8 E 2 7/8 Standard QD Bushing

Product Description

The Martin E27/8 is a standard QD bushing designed for reliable performance in power transmission applications. This bushing fits a bore diameter of two and seven-eighths inches. It features precise machining for consistent quality and is made from ductile iron for added strength.

• Compatible with various mounting methods
• Designed with a flange for secure attachment
• Interchangeable with other manufacturers' QD bushings

Product Highlights

Use this bushing in applications needing strength and reliability. Ideal for various belt drives and pulleys.

Product Information

Standard Information

• Brand: Martin
• MPN: E27/8

Technical Specifications

• Bore Diameter: 2-7/8 inches
• Barrel Diameter: 3.834 inches
• Flange Diameter: 6 inches
• Overall Length: 2-5/8 inches
• Hub Diameter: 7-1/2 inches
• Flange Thickness: 3/4 inch
• Torque Rating: 20000 in-lb
• Keyway Size: 3/8 x 3/4 inch
• Number of Bolt Holes: 3
• Screw Size: 1/2-13 x 2-3/4 inches
• Country of Origin: US
