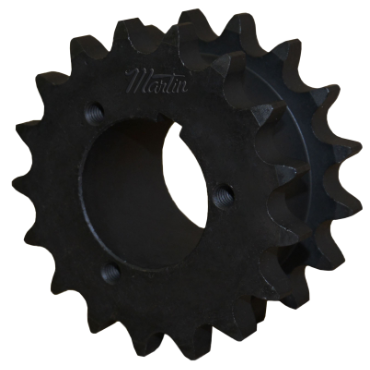

Martin DS80Q19H Split Taper Bushed Sprocket

Product Description

The Martin DS80Q19H is a split taper bushed sprocket designed for use with #80 roller chains. This sprocket features nineteen teeth and is made from high carbon steel. It is suitable for applications involving two separate single row chains.

• Compatible with #80 chain
• Manufactured from durable high carbon steel
• Precision machined for quality performance

Product Highlights

This sprocket includes hardened teeth for increased durability and is engineered to withstand demanding applications. It has a bore designed to accommodate split taper bushings, ensuring a secure fit and easy assembly.

Product Information

Standard Information

• Brand: Martin
• MPN: DS80Q19H

Technical Specifications

• Material: Steel
• Keyway Size: 1/2 x 3.002
• Bushing Series: Q1
• Bore Type: Bushed
• Tooth Width: 0.575 inches
• Chain Pitch: 1.000 inches
• Outside Diameter: 6.59 inches
• Pitch Diameter: 6.076 inches
• Number of Teeth: 19
• Width Across Teeth: 2.188 inches
• No. of Strands: Double Single
• Hardened Teeth: Yes
