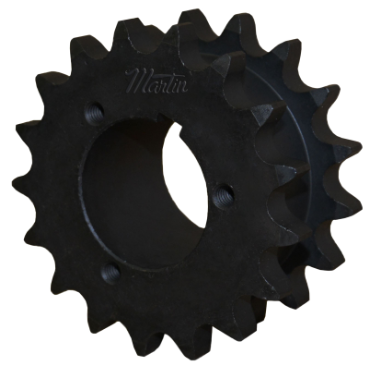

Martin DS80Q17H Split Taper Bushed Sprocket

Product Description

The Martin Split Taper Bushed Sprocket with MPN DS80Q17H is designed for #80 chain applications. It features 17 teeth and is made from high carbon steel. This sprocket is ideal for use in machinery where two single chains are required. It meets rigorous quality standards to ensure longevity and reliability.

• Manufactured from high carbon steel
• Bored to accept split taper bushings
• Designed to increase the longevity of chains

Product Highlights

This sprocket supports parallel chain rows, ensuring high performance in various mechanical setups. Its hardened teeth are suitable for high-speed applications and can handle significant loads.

Product Information

Standard Information

• Brand: Martin
• MPN: DS80Q17H

Technical Specifications

• Chain Pitch: 1.000 in
• Bushing Type: Split Taper
• Root Diameter: 4.817 in
• No. of Teeth: 17
• Pitch Diameter: 5.442 in
• Width Across Teeth: 2.188 in
• Material: Steel
• Outside Diameter: 5.95 in
• Bushing Series: Q1
• Sprocket Style: A-Double Single
• No. of Strands Across: Double Single
• Length Through Bore: 2.188 in
• Keyway: w/Keyway
• Weight: 7.3 LB
