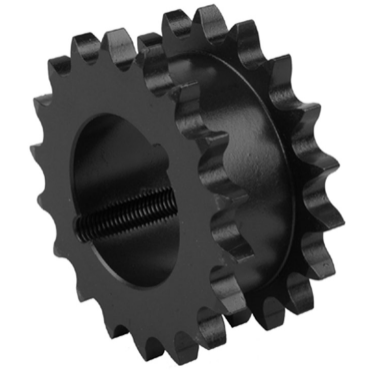

Martin DS50ATB20H Taper Lock Bushed Sprocket

Product Description

The Martin DS50ATB20H is a taper lock bushed sprocket designed for use with number 50 roller chain. This precision machined steel sprocket features twenty teeth and is suitable for double single strand application. It is built to handle demanding conditions with its hardened teeth that enhance durability.

• Compatible with two separate single row chains
• Manufactured from high carbon steel for strength
• Ensures consistent finish and high quality through precise machining

Product Highlights

This sprocket is ideal for mechanical power transmission systems requiring reliable and efficient operation.

Product Information

Standard Information

• Brand: Martin
• MPN: DS50ATB20H

Technical Specifications

• Bushing Type: Taper Lock
• Chain No.: 50
• Hardened Teeth: Yes
• Single Strand Tooth Thickness: 0.343 inches
• Bore Type: Bushed
• Outside Diameter: 4.32 inches
• Material: Steel
• No. of Teeth: 20
• Pitch Diameter: 4 inches
• Length Through Bore: 1.66 inches
• Hub Diameter: 3.284 inches
• Weight: 2.86 lb
• Chain Pitch: 0.625 inches
