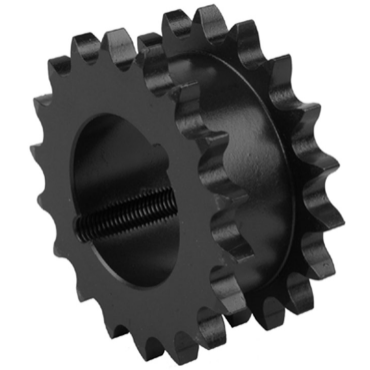

Martin DS40ATB18H Taper Lock Bushed Sprocket - 40 / 1/2 in, 18 Teeth, 1215 Bushing

Product Description

The Martin DS40ATB18H is a taper lock bushed sprocket designed for use with #40 roller chains. This model features 18 teeth and is meant for double single strand applications. Constructed from high carbon steel, it provides durability and strength necessary for various mechanical power transmission tasks.

• Compatible with double single strand chains.
• Manufactured to ensure high precision and quality.
• Designed to maximize the lifespan of both the sprocket and chain.

Product Highlights

This sprocket is essential for effective chain operation in various machinery and applications.

Product Information

Standard Information

• Brand: Martin
• MPN: DS40ATB18H

Technical Specifications

• Chain Pitch: 0.500 in
• Number of Strands Across: Double Single
• Bushing Series: 1215
• Pitch Diameter: 2.88 in
• Caliper Diameter: 2.57 in
• Outside Diameter (Min): 3.14 in
• Length Through Bore: 1.41 in
• Bore Type: Bushed
• Material: Steel
• Bushing Type: Taper Lock
• Hardened Teeth: Yes
• Hub Diameter: 2.296 in
• Single Strand Tooth Thickness: 0.284 in
• Type: A-Double Single
• Width Across Teeth: 1.41 in
• Chain No.: 40
• Inch/Metric: Inch
• Tooth Width: 0.284 in
• Number of Teeth: 18
• Weight: 0.94 lb
• EAN or UPC: 697950329116
