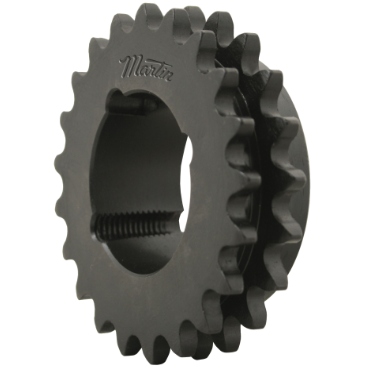

Martin D80CTB45 Bushing Bore Roller Chain Sprocket - Taper Locking - Double, 80 / 1 in, 45 Teeth, 3020 Bushing

Product Description

The Martin D80CTB45 is a high-quality bushing bore roller chain sprocket designed for reliable mechanical power transmission. This sprocket features a taper locking system and is made from steel material. It has a total of 45 teeth and accommodates a chain number of 80 with a pitch of one inch. The product is ideal for use in various mechanical applications where durability and precision are essential.

• Taper locking design ensures a secure fit on the shaft.
• Manufactured with high carbon steel for strength and durability.
• Meets or exceeds ANSI standards for reliability.

Product Highlights

This bushing bore roller chain sprocket provides consistent performance and longevity thanks to its precise machining and tapered bushing design.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• Weight: 41.40 lbs
• Material: Steel
• Bore Type: Bushed
• Pitch Type: Single
• Tooth Width: 0.557 in
• Bushing Size: 3020
• Bushing Type: Taper Locking - Double
• Hub Diameter: 5-1/4 in
• Overall Width: 2 in
• Number Of Hubs: 2
• Number Of Teeth: 45
• Chain Number & Pitch: 80 / 1 in
• Outside Diameter: 14.9010 in
• Storage Dimension Width: 14.901 in
• Width Across Tooth Sets: 1.71 in
