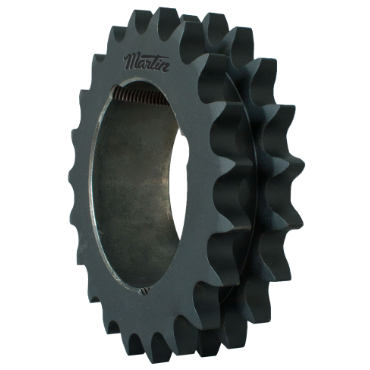

Martin D80BTB20H Bushing Bore Roller Chain Sprocket - Taper Locking - Double, 80 / 1 in, 20 Teeth, 3020 Bushing

Product Description

The Martin D80BTB20H is a bushing bore roller chain sprocket designed for reliability in mechanical power transmission. This sprocket features a taper locking mechanism which provides a secure fit on the shaft, ensuring consistent performance under load. The durable construction with high carbon steel enhances longevity and performance.

• Taper locking design for secure attachment to the shaft.
• Manufactured to meet ANSI standards for high quality.
• Suitable for standard roller chain applications.

Product Highlights

This sprocket is ideal for various mechanical applications where strength and precision are essential. It features hardened teeth for increased wear resistance and comes equipped with a protective coating for added durability.

Product Information

Standard Information

• Brand: Martin
• Country of Origin: United States

Technical Specifications

• MPN: D80BTB20H
• Tooth Width: 0.557 inches
• Hub Diameter: 5-1/4 inches
• Overall Width: 2 inches
• Pitch Type: Single
• Pitch Diameter: 6.3925 inches
• Number of Teeth: 20
• Chain Number & Pitch: 80 / 1 inches
