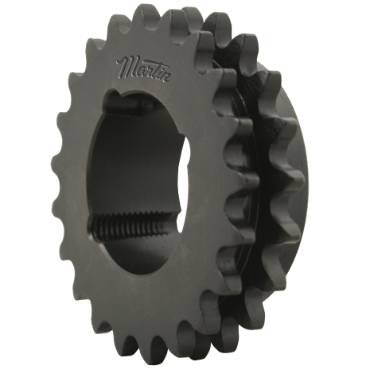

Martin D40BTB20H Bushing Bore Roller Chain Sprocket - Taper Locking - Double 40 / 1/2 in 1610

Product Description

The Martin D40BTB20H is a bushing bore roller chain sprocket designed for use with chain number 40 and a pitch of one-half inch. The sprocket features a taper locking mechanism and is constructed from high-quality steel for durability. It fits a variety of applications requiring reliable power transmission.

• Double sprocket design
• Compatible with 1610 bushing
• Manufactured under strict ANSI standards

Product Highlights

This sprocket's taper bushing provides a strong grip on the shaft, ensuring stable operation. The precise machining meets high standards for performance, making it suitable for industrial applications.

Product Information

Standard Information

• Product Name: Bushing Bore Roller Chain Sprocket
• Brand: Martin

Technical Specifications

• MPN: D40BTB20H
• Tooth Count: 20
• Pitch Diameter: 3.1962 inches
• Hub Diameter: 2-5/8 inches
• Overall Width: 1 inch
• Bushing Bore Range: 1/2 to 1-5/8 inches
• Chain Type: Standard Roller Chain
• Surface Treatment: Protective Coating
