Martin CSW6 Waste Pack Seal

Product Description

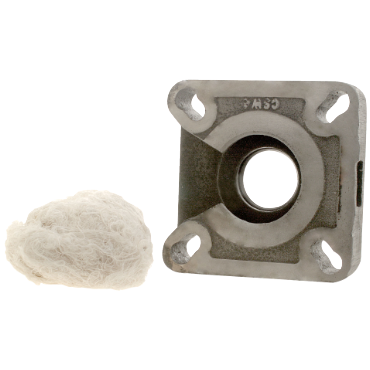

The Martin CSW6 Waste Pack Seal is designed for efficient sealing applications. This product combines waste packing and a lip seal, providing a reliable solution for various installations. Typically, it is mounted between the trough end and bearing but can also be used independently on pedestal-type trough ends. An accessible top opening allows for easy repacking without the need to remove the seal from the trough end.

• Compatible with three-inch shafts
• Easy access for repacking
• Durable design for various applications

Product Highlights

The Martin CSW6 provides a secure seal suitable for different environments, ensuring minimal leakage. Its design caters to hassle-free maintenance and replacement.

Product Information

Standard Information

• Brand: Martin
• Part Number: CSW6

Technical Specifications

• Seal Type: Waste Pack Seal
• Flange Thickness: One and three-quarters inches
• Bolt Hole Spacing Vertical: Six inches
• Bolt Hole Size: Three-quarters inches
• Shaft Diameter: Three inches
• Bolt Hole Spacing Horizontal: Six inches
• Weight: Thirteen pounds
• EAN or UPC: 697950080628
