Martin CSW20044X40 Standard Duty Wing Pulley (20 in Dia x 44 in Face Width)

Product Description

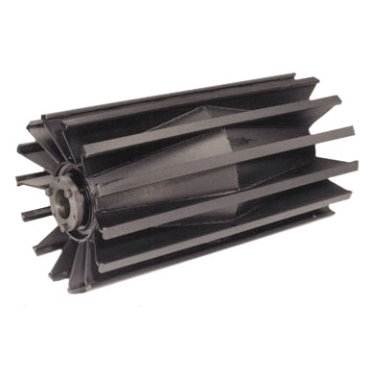

Martin CSW20044X40 is a standard duty wing conveyor pulley with a 20 in outside diameter and 44 in face width. The steel pulley features a crown face profile and is designed for use with the MXT40 bushing series; maximum bore is 4 in with a 1 in setback. The wing profile promotes material shedding and belt cleaning for industrial conveyor applications and weighs approximately 418 lb.

• Standard duty wing pulley; 20 in outside diameter and 44 in face width with crown face profile
• Compatible with MXT40/XT40 bushing series; maximum bore 4 in and 1 in setback
• Steel construction and wing design for material shedding and belt cleaning; approximate weight 418 lb

Product Highlights

Standard duty steel wing pulley, 20 in OD x 44 in face, crown face, MXT40 bushing compatibility, 4 in max bore, 1 in setback

Product Information

Standard Information

• Brand: MARTIN
• Manufacturer Part Number: CSW20044X40
• Country of Origin: US

Technical Specifications

• Brand: Martin
• Manufacturer Part Number: CSW20044X40
• Product Type: Conveyor Pulley
• Pulley Type: Standard Duty Wing
• Material: Steel
• Outside Diameter: 20 in
• Face Width: 44 in
• Face Profile: Crown Face
• Bushing Series: MXT40
• Bushing Type: MXT/XT40
• Max Bore Size: 4 in
• Setback: 1 in
• Duty: Standard
• Weight: 418 lb
• Unit of Measure: each
• Inch/Metric: Inch
• EAN/UPC: 697950461304
