Martin CMW20044X40 mine duty wing pulley (20 in x 44 in)

Product Description

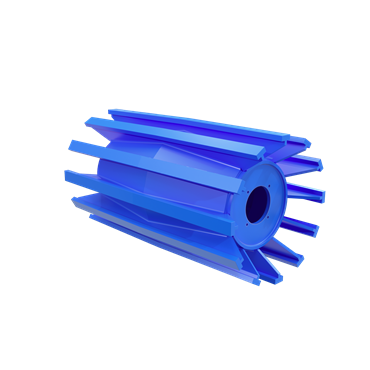

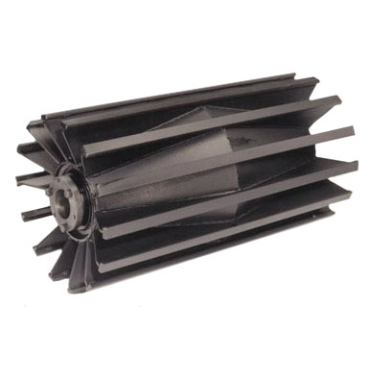

Martin CMW20044X40 is a mine duty wing conveyor pulley with a 20 in outside diameter and 44 in face width. It has a crowned face and 1 in setback, uses the MXT40 bushing series (MXT bushing type) and supports bores up to 4 in. Constructed with carbon steel internal components and a steel external shell, the pulley weighs 632.0 lb and is intended for mine-duty conveyor belt systems to reduce buildup and aid tracking.

• 20 in outside diameter and 44 in face width
• Crowned face with 1 in setback; wing-style design reduces material buildup
• MXT40 bushing series (MXT type), accommodates bores up to 4 in; 632.0 lb weight

Product Highlights

Mine duty wing pulley, 20 in OD x 44 in FW, crowned face, MXT40 bushing series, 632.0 lb

Product Information

Standard Information

• Brand: MARTIN
• Manufacturer Part Number: CMW20044X40
• Country of Origin: United States

Technical Specifications

• Manufacturer: Martin
• MPN: CMW20044X40
• Product Name: Mine duty wing pulley
• Outside Diameter: 20 in
• Face Width: 44 in
• Face Type: Crown
• Setback: 1 in
• Bushing Series: MXT40
• Bushing Type: MXT
• Bore Range (Max): 4 in
• Pulley Type: Mine Duty Wing
• Pulley Style: Wing
• Duty: Mine
• Material Internal: Carbon Steel
• Material External: Steel
• Weight: 632.0 lb
• Country of Origin: United States
• Item Number: 104044827
• EAN/UPC: 697950461434
