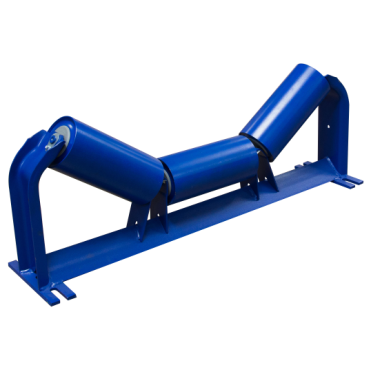

Martin C5-35T-24-09 | CEMA C 35° Trougher Equal Idler

Product Description

The Martin C5-35T-24-09 is a CEMA C troughing equal idler designed for conveyor systems. This idler features a belt width of twenty-four inches and a roller diameter of five inches, making it suitable for medium-duty applications. It is built to provide reliable performance and efficient material handling.

• Optimized for CEMA Class C applications
• Constructed with steel for durability
• Designed for easy installation and maintenance

Product Highlights

The C5-35T-24-09 idler is a vital component in maintaining conveyor efficiency, designed to lower rolling resistance and improve energy consumption. Its robust construction allows it to handle various materials while ensuring minimal maintenance.

Product Information

Standard Information

• Brand: Martin
• Part Number: C5-35T-24-09

Technical Specifications

• Belt Width: 24 inches
• Roller Diameter: 5 inches
• Roller Length: 8.94 inches
• Bracket Width: 8 inches
• Bracket Length: 35.5 inches
• Trough Angle: 35 degrees
• Weight: 52.0 pounds
• Material: Steel
• CEMA Class: CEMA Class C - Medium Duty
• Shaft Diameter: 20 mm
