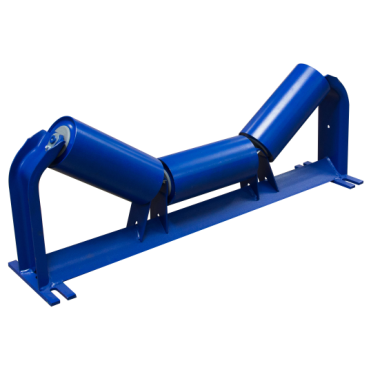

Martin C5-35T-18-09 CEMA C 35° Trougher Equal Idler

Product Description

The Martin C5-35T-18-09 is a CEMA C 35° Trougher Equal Idler designed for material handling applications. Built to support an eighteen-inch belt width, the idler features a roller diameter of five inches and a roller length of six point seven five inches. The construction includes a durable steel roller that maintains operational efficiency.

• Recommended for medium-duty applications
• Allows for smoother conveyor operation
• Facilitates easier maintenance and installation

Product Highlights

This equal trougher idler supports optimal conveyor performance with a reliable design.

Product Information

Standard Information

• Brand: Martin
• MPN: C5-35T-18-09

Technical Specifications

• Roller Diameter: 5 inches
• Roller Material: Steel
• Bracket Width: 8 inches
• Bolt Hole Spacing - Width [Min]: 5.5 inches
• Trough Angle [Min]: 35 degrees
• Bolt Hole Spacing - Length: 27 inches
• CEMA Class: CEMA Class C - Medium Duty
• Shaft Diameter: 20 mm
• Roller Length: 6.75 inches
• Belt Width: 18 inches
• Idler Type: Equal Trougher
• Bracket Length: 29.5 inches
• Weight: 43 lbs
• EAN or UPC: 697950819518
