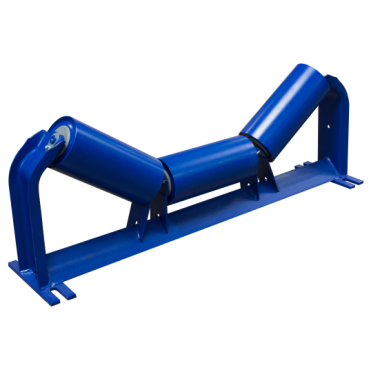

Martin C5-20T-48-09 Trougher Equal Idler Complete Assembly - C Rating, 20 Angle, 5 in Roll Diameter, 48 in Belt Width

Product Description

The Martin C5-20T-48-09 is a troughing idler used in conveyor systems. It features a CEMA Class C design, ideal for medium-duty applications. This idler is suitable for belts that are forty-eight inches wide and has a roller diameter of five inches.

• Suitable for CEMA Class C applications
• Constructed from durable steel material
• Designed for a belt width of forty-eight inches

Product Highlights

This idler assembly helps maintain proper belt alignment and reduces rolling resistance which can enhance efficiency in material handling operations.

Product Information

Standard Information

• Brand: Martin
• Part Number: C5-20T-48-09

Technical Specifications

• Weight: 91.0 LB
• Belt Width: 48 inches
• Diameter of Roller: 5 inches
• Roller Length: 17.63 inches
• CEMA Class: CEMA Class C - Medium Duty
• Angle of Trough: 20 degrees
• Bracket Length: 59.5 inches
• Bracket Width: 9.5 inches
• Distance Between Mounting Holes: 57 inches
• Shaft Diameter: 20 mm
