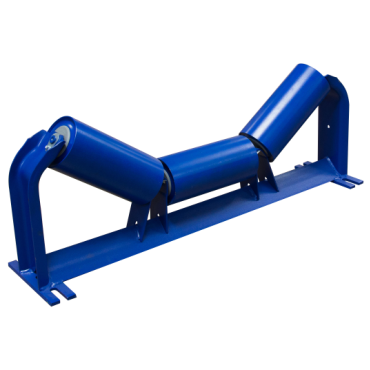

Martin C5-20T-24-09 Trougher Equal Idler - CEMA C 20 Degree - 24 in

Product Description

The Martin C5-20T-24-09 is a CEMA Class C Trougher Equal Idler designed for effective material handling. This product supports a belt width of twenty-four inches and features a roller diameter of five inches, making it suitable for various applications.

• Optimized for CEMA Class C standards
• Designed to promote a lower rolling resistance
• Ready to ship within 24 hours

Product Highlights

This idler unit is engineered to handle medium-duty applications while ensuring energy efficiency in conveyor systems.

Product Information

Standard Information

• Brand: Martin
• MPN: C5-20T-24-09

Technical Specifications

• Belt Width: 24 in
• Idler Type: Equal Trougher
• CEMA Class: CEMA Class C - Medium Duty
• Roller Length: 8.94 in
• Roller Diameter: 5 in
• Bracket Width: 8 in
• Weight: 48.0 LB
• Shaft Dia.: 20 mm
• Trough Angle: 20 degrees
• Roller Material: Steel
• Bolt Hole Spacing (Width Min): 5.5 in
• Bolt Hole Spacing (Length): 33 in
• Bracket Length: 35.5 in
