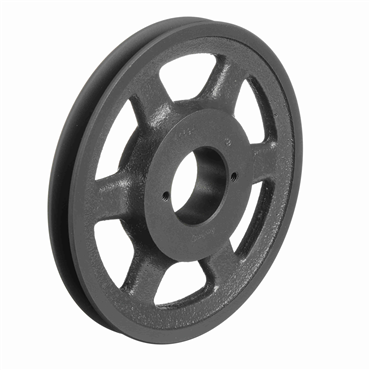

Martin AK69-H FHP V-Belt Pulley - 3L, 4L, A Belt Section - Replacement MPN 00540

Product Description

The Martin AK69-H FHP V-Belt Pulley is designed for reliable performance in light-duty applications. This pulley is compatible with split taper bushings and meets industry tolerances. It features a pitch diameter of six point five inches and an outside diameter of six point seven five inches. Constructed from cast iron, it ensures durability and efficiency in mechanical power transmission systems.

• Light-duty application support
• Compatible with split taper bushings
• Complies with industry tolerance standards

Product Highlights

Ideal for mechanical power transmission, this pulley combines precise machining with a consistent finish for high quality.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: Mexico

Technical Specifications

• MPN: AK69-H
• Weight: 3.00 lbs
• Material: Cast Iron
• Bore Type: Bushed
• Face Width: 0.7500 in
• Pitch Diameter: 6.5 in
• Outside Diameter: 6.7500 in
• Belt Section Size: 3L, 4L, A
