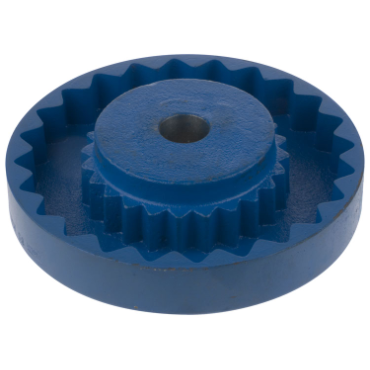

Martin 9S13/8 QUADRA-FLEX Coupling Flange Power (Size 1 3/8 in)

Product Description

The Martin 9S13/8 is a QUADRA-FLEX Coupling Flange designed for reliable operation in mechanical power transmission applications. This coupling flange is bored to a size of 1 3/8 inches.

• Bore size: 1.375 inches.
• Constructed from cast iron for durability.
• Maximum RPM rating of 3,750 for efficient performance.

Product Highlights

The 9S13/8 coupling flange is ideal for various applications requiring secure connections between components. It utilizes a setscrew lock type for stability and is perfect for use in mechanical power transmission systems.

Product Information

Standard Information

• Brand: Martin
• MPN: 9S13/8

Technical Specifications

• Bushing Series: N/A
• Outside Diameter: 6.3500 inches
• Length Through Bore: 2 13/32 inches
• Bore Type: Finished Bore
• Lock Type: Setscrew
• Coupling Size: 9S
• Keyway Size: 5/16 x 5/32 inches
• Bore Size: 1.375 inches
• Material: Cast Iron
• Set Screw: Yes
• Hub Diameter: 3 5/8 inches
• RPM [Max]: 3,750
• Weight: 7.86 LB
• EAN or UPC: 697950278032
